Commercial fold-able octopus grow lights bring flexible coverage for indoor farms, but their multi-articulated bar structure easily triggers severe light waste issues: mutual shading between bars, photon spill out of crop canopy, over-bright hot-spots and dark growing zones.
Our engineering team focused on this pain point and built a complete optical optimization system.
Four adjustable parameters — chip density, bar distance & tilt angle, whole fixture mounting angle, and multi-light system layout — work together to minimize light loss, boost photon utilization and deliver uniform PPFD across the full plant canopy.、
In this post, we will break down every technical improvement and explain how each tweak fixes light waste for your indoor cultivation.

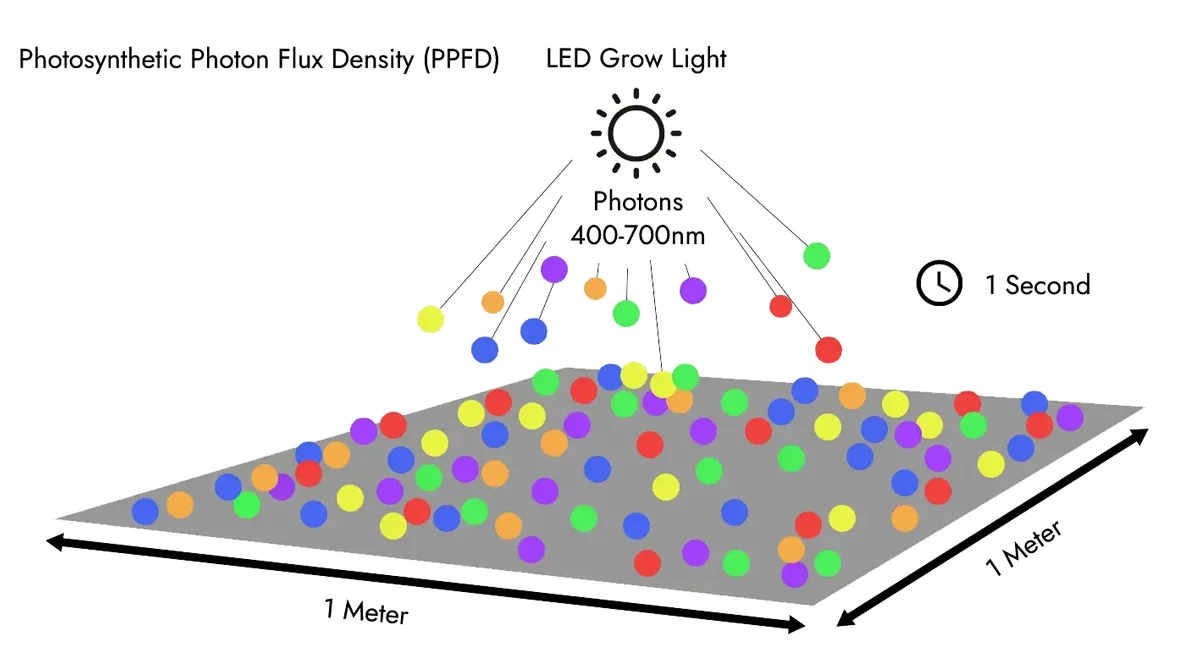

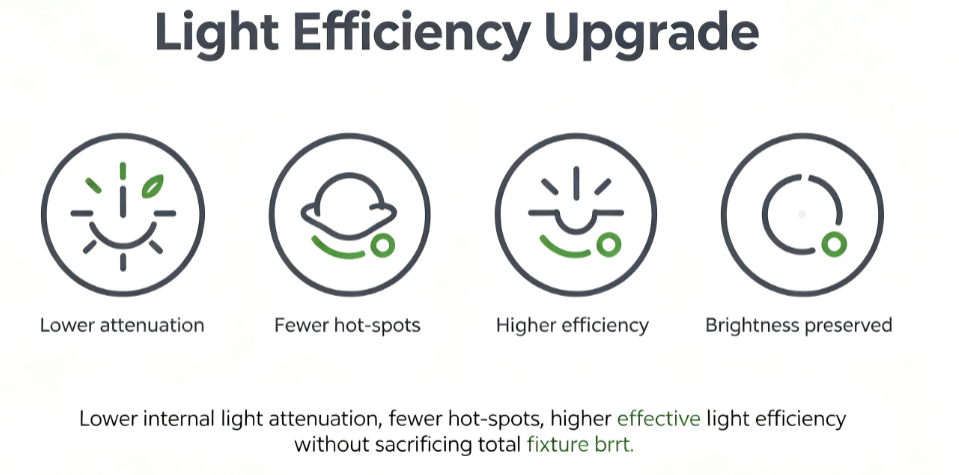

When LED chips are overly dense on each movable bar, adjacent chips block each other’s light output. Internal light reflection absorption increases heat buildup, which accelerates light decay and wastes a large portion of photons before they even leave the light bar. Dense chips also create concentrated hot-spots on the canopy.

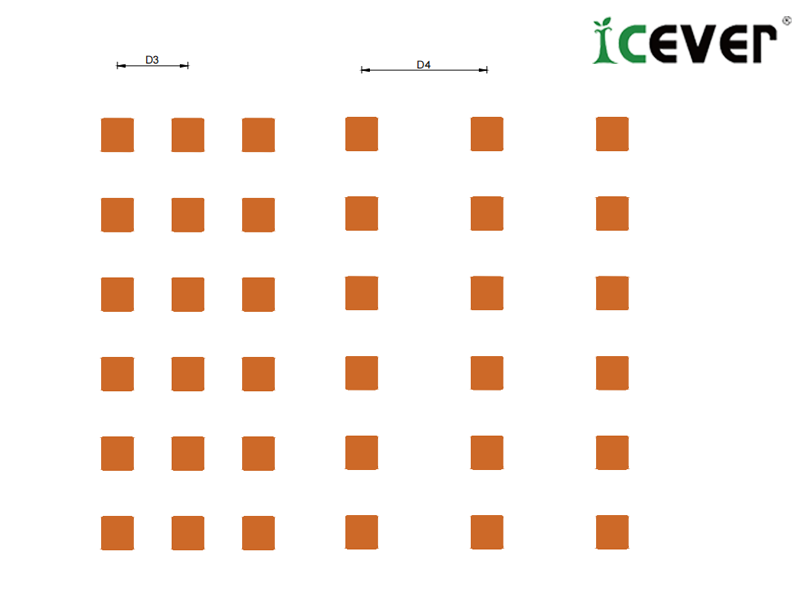

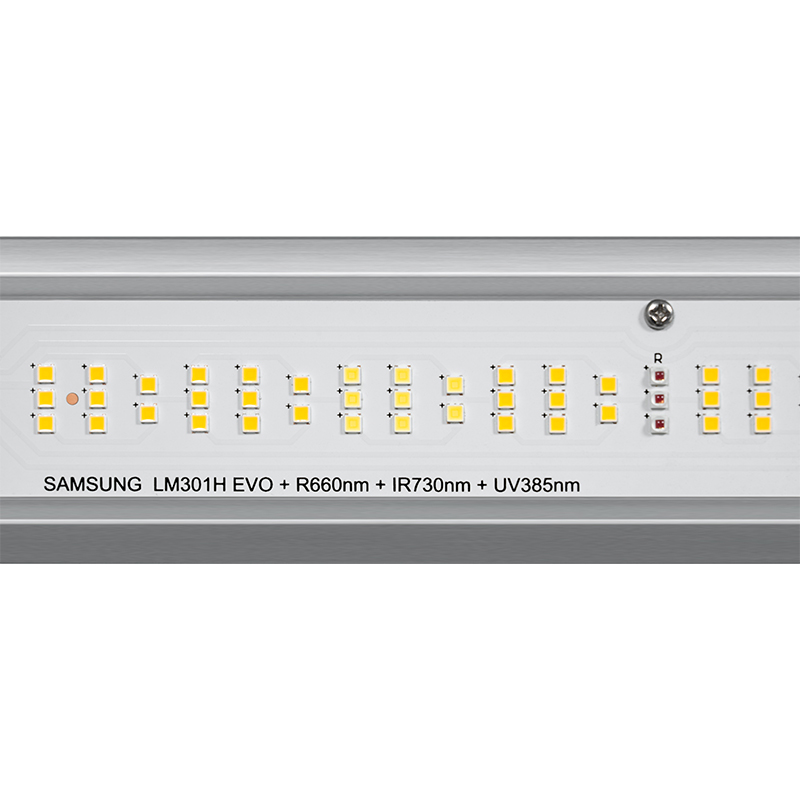

We reworked the chip arrangement on grow light bar:
Adjust chip spacing to a scientific uniform layout, reduce overlapping self-shading between chips
Balance total light output and local heat load to cut thermal-induced light loss
Ensure each chip emits usable photons straight down toward crops instead of being blocked by neighboring components
We always focus on customers, pay attention to their needs, provide high-quality products and excellent services to meet their expectations.

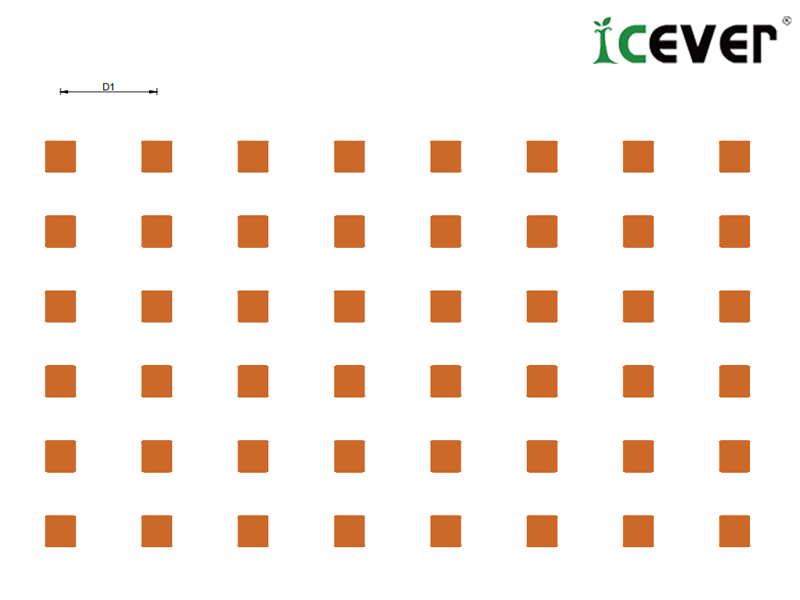

Products such as top lights are built compactly to cut overall size via high-density layout. This layout causes slight shade formation and delivers relatively concentrated light.
However, the chips generate substantial heat and interfere with one another thermally.

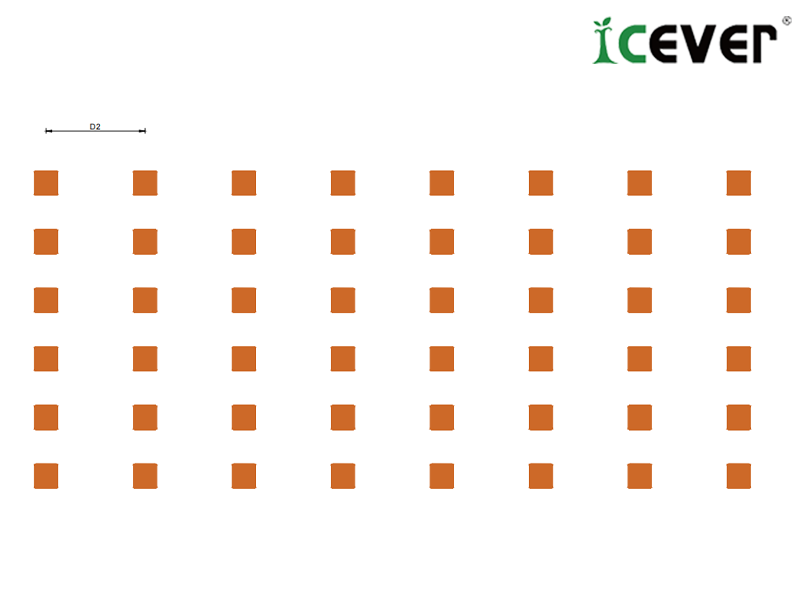

Indoor grow lights adopt low-density layout. Even when lights are placed close together, they can cast highly uniform illumination.
The layout density is adjusted flexibly according to product positioning and installation conditions. Factors including heat distribution and lighting coverage are taken into account. Local heat dissipation is upgraded appropriately by adding heat-conductive materials or coatings to tailor the product for specific projects.
This design helps make efficient use of electric power throughout long-term operation and prevents light photon waste.
By combining various principles, it is possible to cover most lighting scenarios and improve light utilization.
The V3 design’s biggest feature is independently movable light bars, but improper factory default spacing and angles cause bars to block light from one another — this is one of the largest sources of light waste for octopus grow lights.

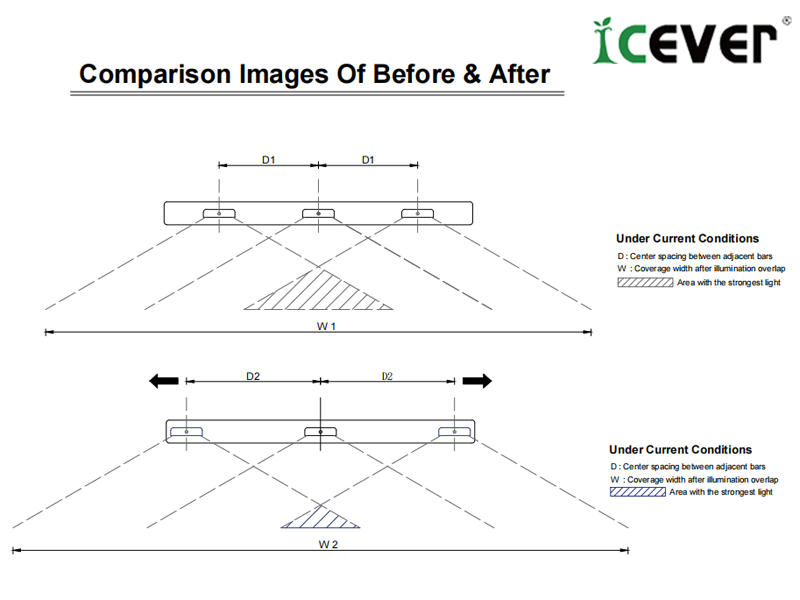

Before
Narrow gaps between parallel bars create heavy overlapping light and mutual shading; air circulation is limited to worsen heat loss.
After
Widen the spacing between each movable bar of the V3 fixture. Extra gaps eliminate cross-bar shading and create ventilation channels to reduce heat-related light drop-off.

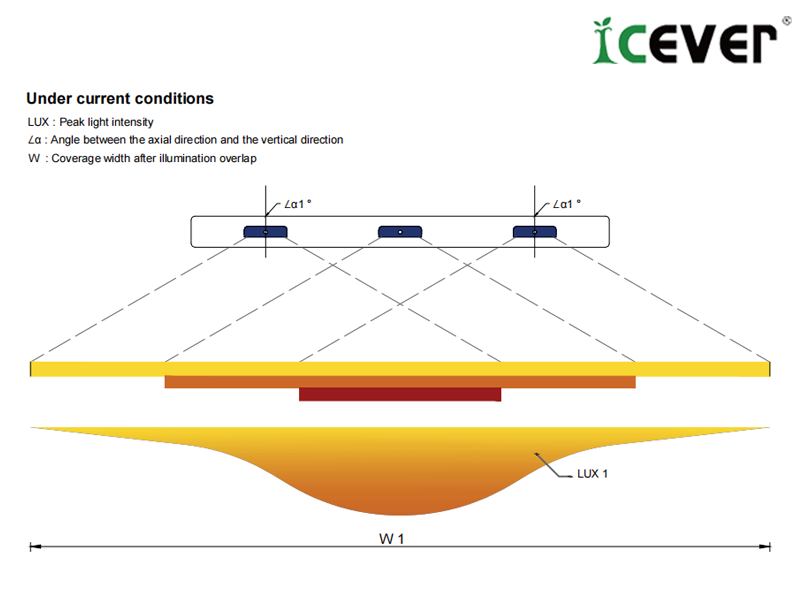

Before: All bars hang straight vertically. Inner bars block light from outer arms, leading to dark edges and overexposed center zones
After: Adjust each movable bar to a customized outward tilt angle α. The staggered light path avoids mutual occlusion, spreads light evenly and prevents photons from overlapping excessively in the middle canopy.

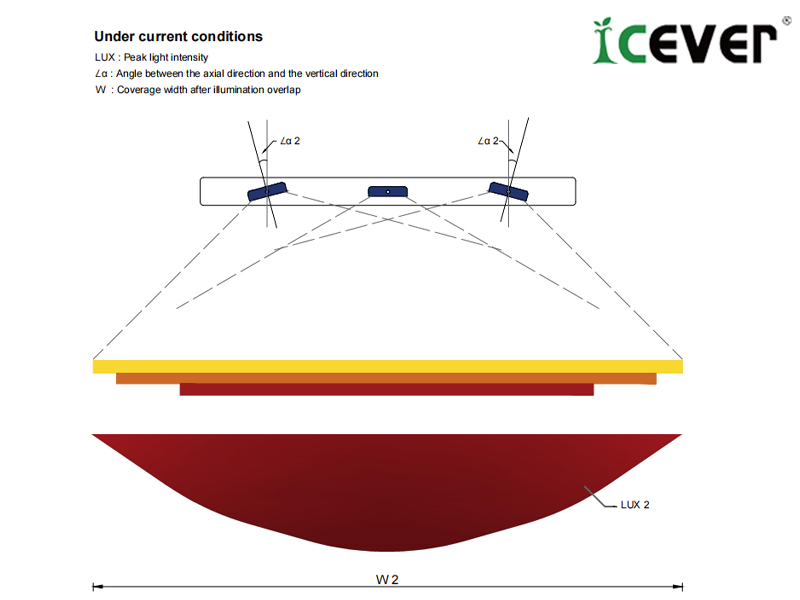

Outward Rotation:
Expand Lighting Coverage

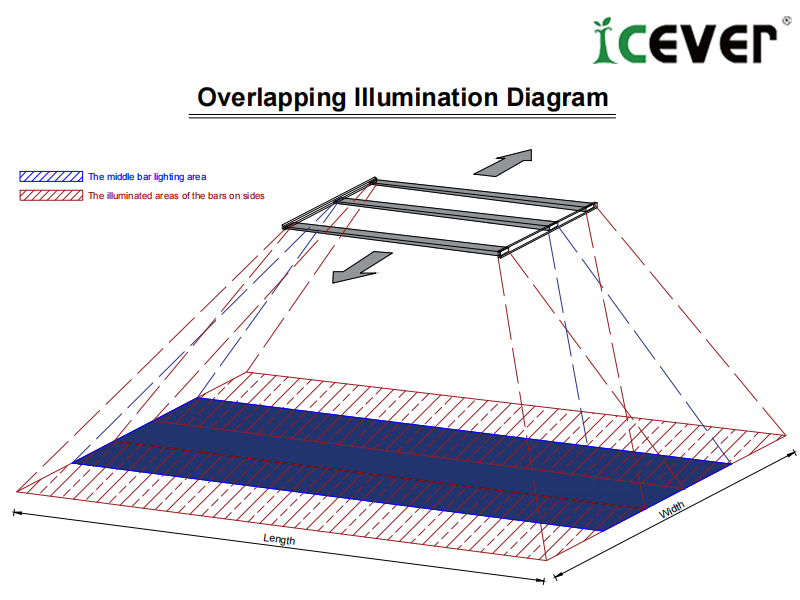

This design reduces overlapping light areas between different light bars. Without adjusting the hanging height, it broadens the illuminated area on the target horizontal plane. This technology works excellently for projects and scenarios with limited installation height.

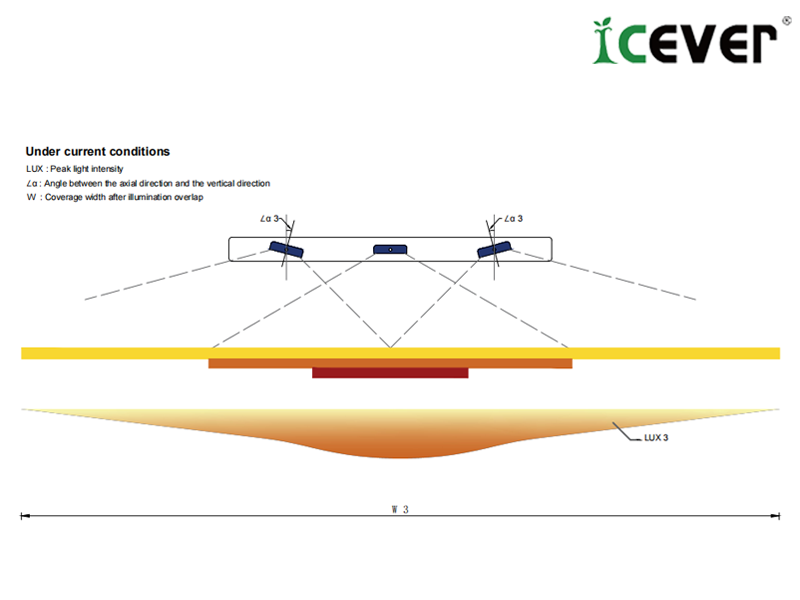

Inward Rotation:
Concentrate Light Output
Another approach increases light overlap to narrow down the lighting range. Traditional designs usually use lenses and reflectors to achieve this effect, yet they greatly limit adjustability. This design is ideal for regions with strict requirements on light loss and high electricity costs.
Core Benefit
Remove shading loss between light bars; balance light intensity from fixture center to edges.
Many growers overlook the difference between bar tilt angle (α) and whole fixture tilt angle (β) — these two independent adjustments solve different light waste issues.
The Waste Issue
If the entire V3 octopus light is mounted perfectly horizontal, light from the outermost bars spills sideways outside the planting bed. All these escaped photons become wasted energy with zero contribution to crop growth.
Our Optimization Method
We support adjustable overall fixture tilt angle β for the full V3 light frame:

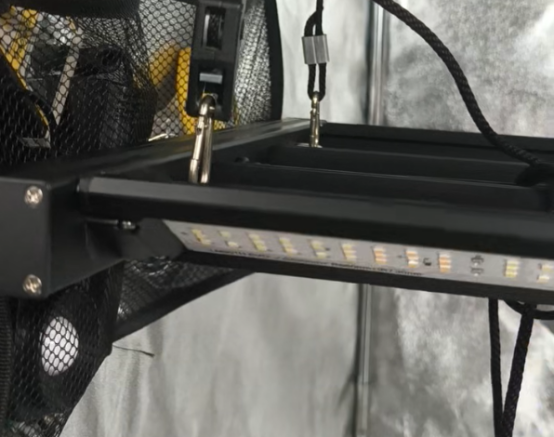

We produced actual angle-adjustable growth light samples based on the concept of light loss to verify market feasibility.Tilt the whole fixture slightly inward to gather scattered edge light back onto the canopy
Match the fixture angle to your grow tent height and bed width to avoid outward light leakage
Core Benefit
Recover stray edge photons, reduce unnecessary power consumption and raise overall light utilization rate. Optimize Multi-V3 System Layout to Fix Overlapped Light & Dark Zones
Light waste does not only happen on a single fixture. Improper arrangement of multiple V3 movable grow lights across your grow space creates two costly problems:
Overlapping high PPFD areas waste photons and risk crop light burn
Large dark gaps between fixtures lead to uneven plant growth
Widen horizontal and vertical installation distance between each V3 octopus light
Match the layout spacing to the effective irradiation range of our optimized V3 bars
Mix fixture heights if needed to fill dark corners without redundant light overlay
Core Benefit
Achieve consistent full-room PPFD distribution, eliminate both wasted over-bright areas and unlit dark zones for your entire cultivation space.
The flexible multi-bar structure of our V3 octopus grow light delivers unmatched coverage flexibility, but it also introduces unique optical loss risks.
Our four targeted improvement measures form a complete light distribution solution:
Optimize chip density | → | Fix internal chip self-shading loss |
Adjust bar spacing & angle α | → | Remove inter-bar shading waste |
Modify light angle β | → | Reduce outward edge light spill |
Optimize multi-light layout | → | Balance full-space light distribution |
By fine-tuning these four adjustable parameters on the V3 movable grow light, growers can capture nearly all emitted photons on the plant canopy, slash energy waste, and get more consistent, higher-yield growth across every crop cycle.
