WHAT IS QB PRO+ SERIES ？
The QB Pro+ series has the same positioning as the QB Pro series, which is designed for large-scale commercial cultivation and professional farms,  it suitable for grower who want efficient and reliable lighting. The QB Pro+ series add 310nm LED chips, giving it a broader spectrum than the QB Pro series. It provides more versatile usage scenarios.  The QB Pro+ also contains a detachable UV light module, which makes users change UVA+UVB easy and cheap. This simple and inexpensive maintenance reduces user costs and increasing their loyalty to the product in your store.
QB PRO+ has the following features:
  • Detachable UV light module with 310nm LED chips
  • Wi-Fi and Bluetooth
  • Light intensity from 0 to 100%, Turn on/off UV/lR separately
  • Samsung, Osram LED chips
  • PPE (2.6 μmol/J)  &  PPF (2496 μmol/s)
  • Aluminum grille 15cm
  • IP65 waterproof
  • Full spectrum
uvb and ir red full spectrum grow led lights with Wi-Fi-controlled QS PRO+
720W uvb grow led lights QS PRO+
1080w 720W full spectrum uva, uvb and ir red grow led lights QS PRO+
heat skin of full spectrum uva, uvb and ir red grow led lights QS PRO+

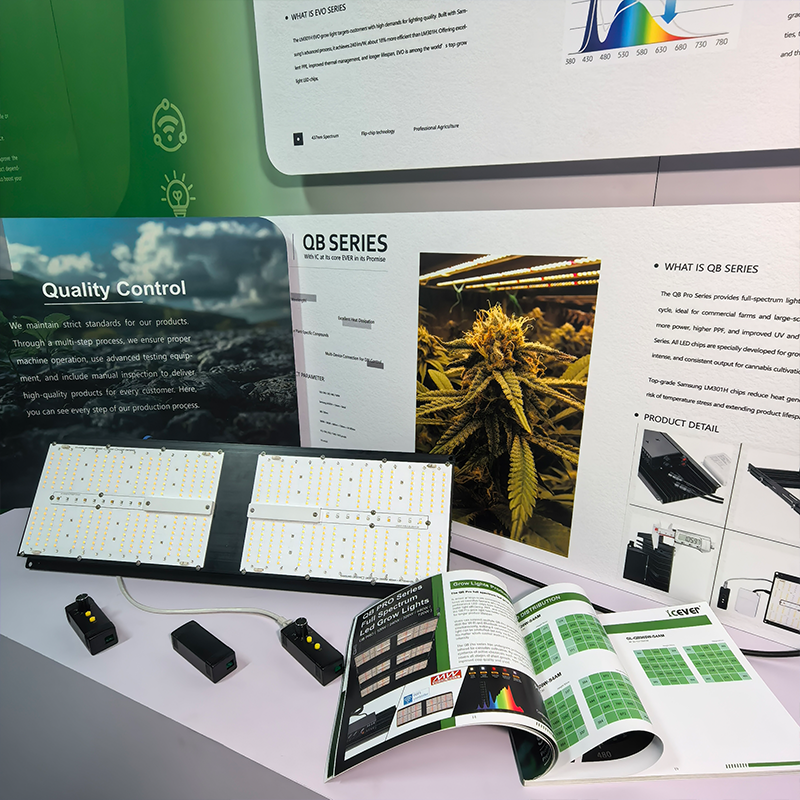

full spectrum uva, uvb and ir red grow light Bluetooth in a fixed location or Wi-Fi for remote control, users may quickly alter lighting modes and intensity

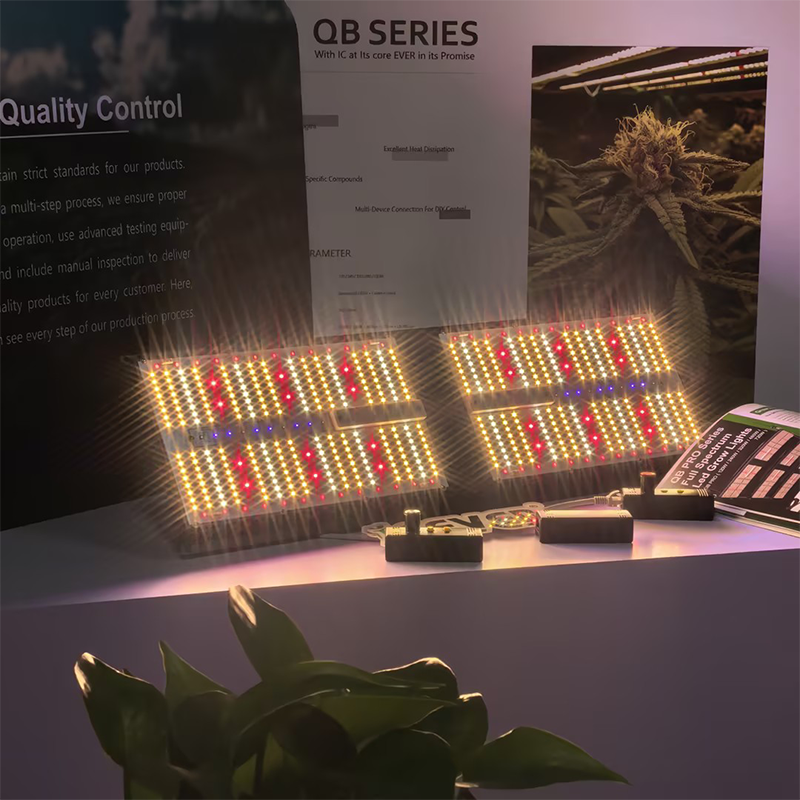

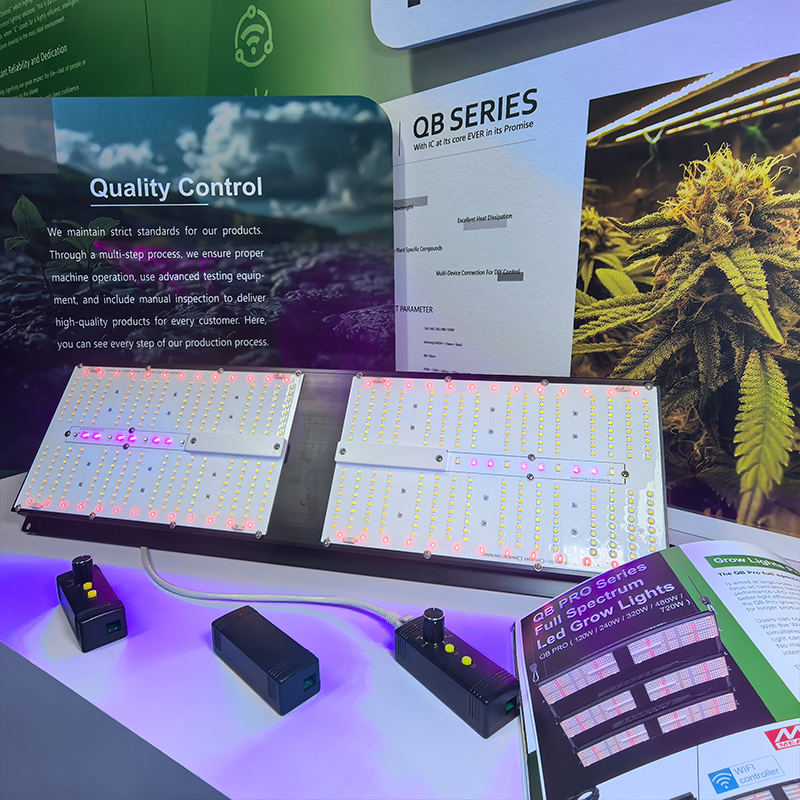

connect full spectrum grow led lights with each other / uva, uvb and ir red
The QB Pro+ series could connect with each other and remote control via Wi-Fi and Bluetooth, it ideal for large-scale planting management. and whether using Bluetooth in a fixed location or Wi-Fi for remote control, users can quickly change lighting modes or intensity to make lighting suitable and right. This offers commercial farmers and professional growers an effective and convenient lighting management solution.

The QB Pro+ series has undergone professional spectrum calibration and is specifically tailored, increasing the synthesis of active chemicals such as THC, CBD, and terpenes. The whole spectrum covers all stages of plant growth, from vegetative to blooming, resulting in dramatically improved crop quality and yield.
WHY CHOOSE QB PRO+ SERIES ？
  • For plants, the full-spectrum of QB Pro+ covers the whole plant life cycle, from vegetative to flowering. According to the European Report 9th Edition, the proper LED light arrangement can boost light energy, improve photosynthetic efficiency, strengthen root and stem development, and lay a better foundation for crops' future potential. This series includes a replaceable 310nm UV, which helps consumers improve their growing environment, making it a popular additional purchase among professional growers.
  • Users benefit from the low heat output of top-tier LED chips such as the Samsung LM301H, which decreases the risk of temperature damage and extends the life of the lights. Reputable assessments indicate that, in the long run, using effective LED lighting is critical for cost savings and considerably aids in the synthesis of essential molecules in plants.

The ICEVER QB Pro+ series boosts plant output and has a very long lifespan, making you more profitable and lowering costs as compared to farmers that do not utilize this product or other products.

Most importantly, the QB Pro+ series assists farmers in optimising light management through its clever Wi-Fi and Bluetooth control functions, resulting in effective returns at minimal costs and putting you ahead in a competitive market. The ICEVER QB Pro+ is intended to provide more options for creating a smart system.

For more information, please expand the content.

  For more information you would like, please expand the Content
  • ⭐ ⭐ ⭐ UV Detachable Light Module
    QB PRO+ grow light with replacable UVB+UVA module, cheap replace costCompared to the PRO series, the PRO+ series adds 310nm LED chips, giving the QB PRO+ series a broader spectrum. By expanding the spectral range, the QB Pro+ lights create more usage scenarios for plant grow lights.
    In fact, 310nm light is very common in everyday life, such as sterilizing items in public spaces and treating skin conditions in medical settings. Due to its high energy, earlier research found that ultraviolet light could cause plant yellowing, stunting, or even death, which is why it was not widely used in traditional cultivation. However, as scientific research in plant cultivation has increased, it has been discovered that 310nm light also has its advantages. At appropriate doses, it helps improve plant quality, but excessive UV-B exposure can trigger oxidative stress, leading to DNA damage in plants. Because of the benefits of 310nm light, it has gradually been incorporated into modern cultivation practices.

    Professional growers need to carefully evaluate and maintain the appropriate dose of 310nm light. If they purchase additional UV light equipment, they may face the following drawbacks: teach you how to change QB PRO+ full spectrum led grow lights replacable UVB+UVA module

    • Limited space for additional UV products in small-scale cultivation
    • Low efficiency of ultraviolet fluorescent lamps and UV tubes (mercury lamps)
    • The need for constant monitoring and separate control

    To address these issues, the QB PRO+ series integrates UV light into the center of the product, allowing it to be controlled alongside other lights through manual, Bluetooth, and Wi-Fi controls.

    Additionally, considering the characteristics of ultraviolet light, such as its short wavelength, high energy, and significant light decay, the QB PRO+ features a detachable UV light module. This allows users to replace it at a low cost, with simple and inexpensive maintenance . Not only does this reduce costs for users, but it also increases their loyalty to the product and the store.

  • Industry-leading global brand LED chips
    samsung lm301H grow led lightsQuality LED chips are always at the heart of any grow light product. Currently, some grow lights on the market employ chips from tiny manufacturers or are counterfeit. Although this saves costs and allows for lower prices, their long-term performance is frequently unstable. Because human eyes cannot precisely distinguish between light properties, consumers may first fail to perceive quality changes in LED chips. However, plants are extremely sensitive to light, and low-quality chips can have a direct impact on plant growth.

    In this aspect, branded LED chips provide more consistent quality and performance. For instance, Samsung LM301H chips shine in light efficiency, endurance, and heat dissipation, producing stable and balanced lighting that maximizes photosynthetic efficiency all through the plant development cycle. Although brand-name chips are more expensive, they are an investment over time. These chips have lower running costs, are more energy-efficient, last longer, and call for less replacements. This is especially critical for agricultural projects that require constant lighting, as the initial investment will result in large long-term advantages.Dimension of samsung grow light chips for growing

    Electrical-to-Light Conversion Efficiency
    High-quality Samsung LM301H LED chips increase the efficiency of turning electrical energy into light energy. Samsung's published technical data shows that the LM301H has a photon efficacy (PPE) of 3.10 μmol/J, which is 24% greater than the LM281B. This high conversion efficiency translates into less energy loss and lower operating costs, making it an excellent choice for grow lights, particularly in commercial growing conditions where energy efficiency is critical.

    PPF (photosynthetic photon flux)
    The LM301H has an extraordinarily high PPF output, guaranteeing that plants receive adequate light throughout their growth cycle, especially in high-yield flower crops. Compared to the LM281B, the LM301H provides a PPF of 0.56 μmol/s at 5000K temperatures. Furthermore, it ensures more consistent light distribution in large-scale applications, which increases photosynthetic efficiency. This innovative, consistent lighting technique increases the quantities of important plant chemicals like THC, CBD, and terpenes, ultimately enhancing crop quality.

    Thermal management
    The Samsung LM301H utilizes a cutting-edge flip-chip design and high-quality heat dissipation materials, facilitating efficient transfer of heat from the chip to external heat sinks, so effectively preventing overheating. In addition, the use of specific thermal substrates and encapsulating materials helps maintain the chip's junction temperature within the range of 25°C to 65°C, assuring consistent performance even during long durations of operation. The LM301H's thermal management mechanism is more developed than those of prior chips, thus it can tolerate larger power densities.

    Lifespan
    The LM301H has an excellent longevity, even in hostile environments. With its sulfur-resistant construction and excellent heat management, the LM301H maintains a luminous flux retention rate of up to 99% in high-temperature, high-humidity settings, considerably minimizing light decay and providing long-term stable light output. This is especially essential for commercial growers because it reduces the frequency of light replacements and lowers overall running expenses.

    Application Scenario and Scalability
    Beyond conventional greenhouse and indoor growing conditions, vertical farms, commercial greenhouses, and high-precision labs find the LM301H's full-spectrum design perfect. Its strong PPE and sulfur resistance offer sustained performance even in prolonged contact to sulfur compounds. High-end uses requiring exact control of light and temperature will find this design perfect since it will let growers maximize output and enhance crop quality.

    spectrum led grow light chips 3000kspectrum led grow light chips 5000kSpectrum Optimization
    In terms of spectrum design, the LM301H has undergone many refinements to meet the specialized needs of grow lights, particularly at 3000K and 5000K. Compared to ordinary chips, the LM301H optimizes the blue light wavelength to 437nm, which better matches the absorption requirements of chlorophyll A and B, greatly increasing photosynthesis efficiency. This optimization raises plant production and quality in addition to helping to build nutrient accumulation.
    Full-spectrum coverage from blue to red light offered by the LM301H enhances disease resistance and nutritional value in addition to encouraging plant development. Its spectrum is more concentrated and efficient than that of other LED chips applied in grow lights.

  • Optimized Spectrum for Plant Growth at All Stages
    Distribution of chips in QB pro+ full spectrum grow lights The QB PRO+ series offers exact lighting support whether it is encouraging leaf development during the vegetative stage or speeding floral and fruit development during the flowering stage. More importantly, this spectrum design aids in the production of crucial active chemicals including THC, CBD, and terpenes, raising crop quality.

    Blue and red light have long been mainly employed in horticulture lighting since it is well known that plants absorb them more efficiently. Other wavelengths, including green, have, however, attracted little interest.

    From Samsung's vantage point, different wavelengths are really crucial for the general development of plants. Many both internal and outside experimental research have confirmed this. Although chlorophyll absorbs red and blue light mostly, green light absorption is less; about 80% of green light passes through the chloroplast (Terashima, 2009). This lets green light find deeper chloroplasts within the leaf (Sun, 1998). The "backscattering effect" (Vogelmann, 2008) produced by the dispersion of green light inside the leaf expands the pathway of green light photons inside the leaf, thereby expanding the possibilities of chloroplast absorption and hence improving photosynthesis.

    full spectrum of led grow lights uva, uvb and ir red full spectrum led grow lights
    This perspective is consistent with the conventional wisdom that says plants mostly absorb red and blue light; nonetheless, past research sometimes neglected green light because of its reflection by chloroplasts. Combining blue, green, yellow, and certain red wavelengths ( 660 nm and 730 nm), a full-spectrum white LED can offer ideal lighting for improved plant growth.

    This knowledge helps the QB+ series lights to be especially tuned to satisfy plant's increasing demand by improving the spectrum design. Apart from raising red and blue light, green light has been included to balance the spectrum, thereby approaching natural sunshine. Conversely, the ideal spectrum neutralizes the light pollution generated by red and blue light, therefore enhancing the visual appeal of your plants and fulfilling the requirements for observation from home growers.



  • High Return on Investment (ROI) and Reduced Future Maintenance Costs

    High-efficiency LED chips
    The QB Pro+ series uses Samsung LM301H LED chips with high electrical-to-light conversion efficiency, achieving a PPE of up to 2.6 μmol/j. It consumes less energy and emits less heat than standard LED chips on the market, resulting in significant savings for farmers on electricity expenditures. The minimal heat output keeps the lights steady during long durations of high-intensity operation.

    Detachable Light Module
    Detachable light components allow users to replace them at a low cost. Maintenance is simple and affordable, which not only reduces user costs but also increases customer loyalty to the product and store.

    Dimmable Design
    The QB Pro+ series offers full light dimming via a knob, as well as separate switches for PW/UV/IR/R spectrum modules. Users can easily modify the light intensity and spectrum, reducing unnecessary energy consumption. Users can precisely customize the spectrum for different plant growth phases, maximizing light utilization and crop growth efficiency.

    Excellent heat dissipation.
    The QB Pro+ series combines low-heat LED chips with an optimized heat dissipation structure to ensure effective temperature control over extended periods of use, reducing overheating. The metal heat sink grille quickly absorbs the heat created by the lights, ensuring stability even during extended high-intensity operation. With this excellent heat dissipation technology, the QB Pro significantly minimizes future maintenance and replacement frequency, thus cutting operational expenses.

    For growers, the QB Pro+ series provides high-efficiency LED chips, a customizable dimming design, and excellent heat dissipation. The QB Pro provides high-quality lighting while dramatically lowering energy usage and future maintenance expenses, resulting in a strong ROI.

    For retailers, the device uses premium LED chips from leading companies, and the guaranteed quality and brand reputation will boost store traffic and visibility.
  • Excellent Product Quality and Rigorous Production Process

    Our facilities employ stringent manufacturing methods to ensure that each product has best performance in use, In particular, ICEVER products have a wealth of exact and good data regarding light source quality, light efficiency, heat energy consumption, service life, and so on. This makes ICEVER products excellent choices in the plant lighting market. As a result, our goods have a broader spectrum, a better light source, a longer service life, and more personalized services than other lighting products.
QB PRO+ SERIES DATASHEET              Contact for More
  • Specifications

    MODEL NO. GL-QB135W-S4AMW4 GL-QB270W-S4AMW4 GL-QB360W-S4AMW4 GL-QB540W-S4AMW4 GL-QB810W-S4AMW4 GL-QB1080W-S4AMW4
    Specifications
    135W
     (120W+IR6.5W+UV9W)
         		 270W
     (240W+IR12W+UV18W)    		 360W
     (320W+IR18W+UV22W)    		 540W
     (480W+IR26W+UV34W)     		 810W
     (720W+IR39W+UV51W)    		 1080W
     (960W+IR54W+UV66W)
    Dimension
    310mm x 207mm x 31mm
         		 630mm x 207mm x 31mm 940mm x 207mm x 31mm 630mm x 600mm x 31mm 900mm x 630mm x 31mm 900mm x 940mm x 31mm
    LED source Samsung LM301H , Osram , Seoul
    Color 310-730nm
    CCT 3000K + 5000K + 660nm + 730nm + 385nm + 310nm
    PPF 312 µmol/s 624 µmol/s 832 µmol/s 1248 µmol/s 1872 µmol/s 2496 µmol/s
    PPE 2.6 umol/J
    Power brand Meanwell
    Power input 100-277V
  • Component

    led chips of uvb marijuana/cannabis grow led lights
    -  Lighting :

    Equipped with Samsung LM301H, Osram red light (660nm), blue light (730nm), and UV LEDs.

    Color Temperature:  3000K+5000K+660nm+ 730nm+385nm+310nm , simulating a natural light environment.

    - Power Supply:

    Power Supply Brand:  Meanwell XLG, an internationally renowned power supply, providing stable voltage and reducing the risks associated with power outages, lightning strikes, or extreme weather. This ensures the LEDs remain within their optimal operating voltage range.

    Input Voltage:  Supports voltage ranges from 100-277V

    Power Input:  Optimized design supports energy-saving modes, improving power usage efficiency.


    growing systems

    - Switches & Dimmers:

    Features full light dimming via a knob, supporting 0-100% light intensity adjustment.

    Independent PW/UV/IR/R switches allow users to control spectral modules individually according to the plant's growth stages.

    -Smart Control System:
    Supports Wi-Fi and Bluetooth control, equipped with an RJ45 interface for multiple light connections, enabling remote adjustment and smart control. You can choose auxiliary control devices that suit your needs.

    -Cooling System:
    Aluminum Heat Sink Grille: As shown in the diagram, the system increases airflow contact area and uses high thermal conductivity materials to maintain low temperatures during prolonged operation, extending the lifespan of the light.


    cannabis growing systems
    -Others:

    Hanging Device:
    Four-point Fixed Hanging System: Provides high-strength installation ropes. Each rope is independently reinforced with enough safety margin to handle potential damage to a single rope, making it suitable for flexible installation in greenhouses or grow tents. The hanging position can be adjusted according to plant height.

    Protection Design:
    IP65 Waterproof and Dustproof Rating: Prevents water vapor, dust, and other particles from entering the light, making it suitable for use in humid or dusty environments. A self-developed nano waterproof coating, combined with the branded LED’s resistance to sulfur, effectively protects against various pesticides and fertilizers used during cultivation.

    Customizable Bracket:
    Special high-strength brackets are available to help combine multiple grow lights into one system (you can check sample pictures or the installation manual for more information).
  • PPFD Distribution
    PPFD Distribution of Qb pro+ full spectrum grow lights PPFD Distribution of Qb pro+ full spectrum marijuana/cannabis grow lights
  • Dimension
    Dimension of Qb pro+ full spectrum grow led lights
  • Certifications
    Our organization is committed to the highest quality and safety standards, and we strive to give our clients with dependable products.

    Our products have received numerous international certifications, including CE, ROHS, FCC, and ETL. These certifications not only indicate our products' superior performance in terms of safety, electromagnetic compatibility, and environmental protection, but also reflect our extensive knowledge of the global market and client needs.

    We will continue to uphold these high standards, offering clients reliable and high-quality items.
  • Install
    Install to QP full spectrum grow led lights step by step Install to QP full spectrum grow led lights step by step 2

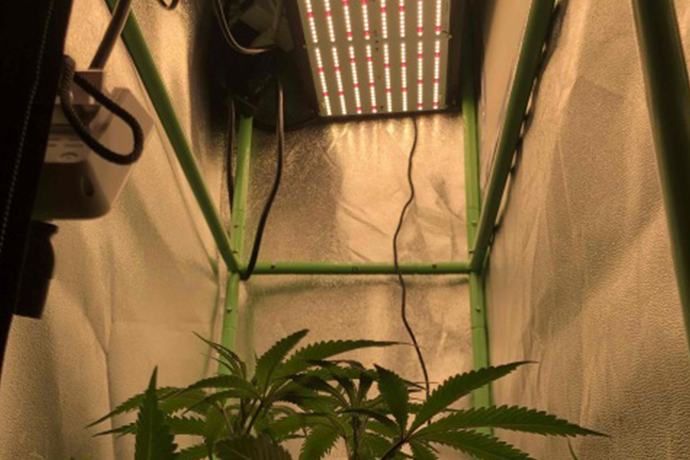

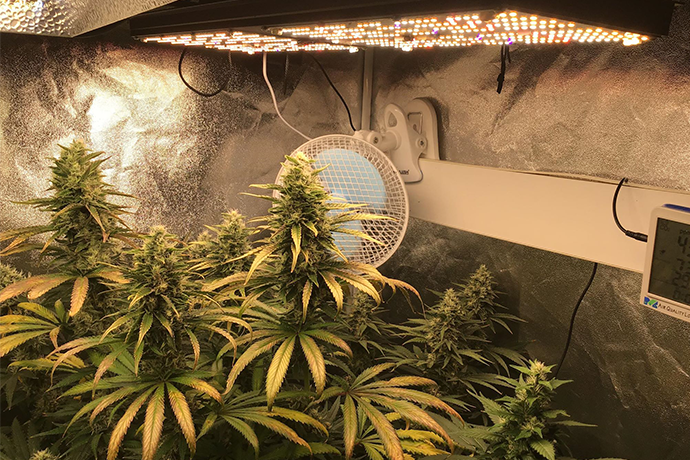

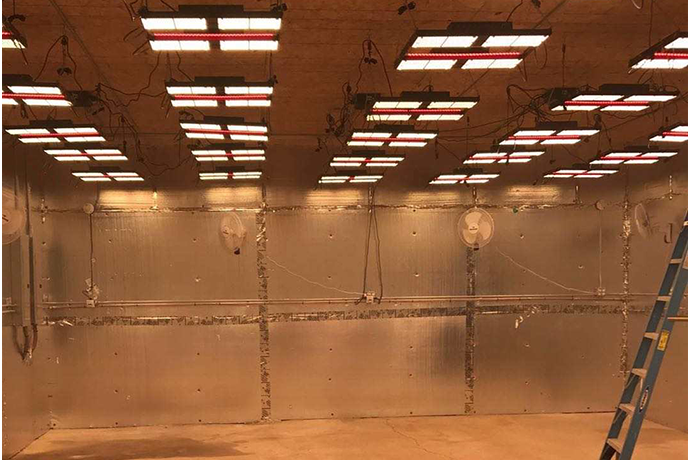

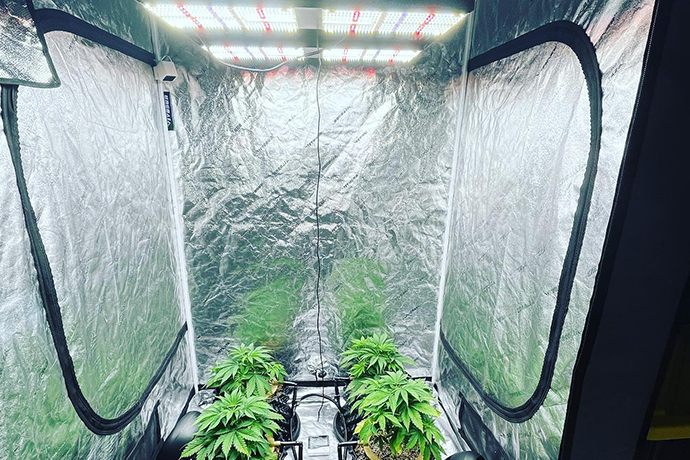

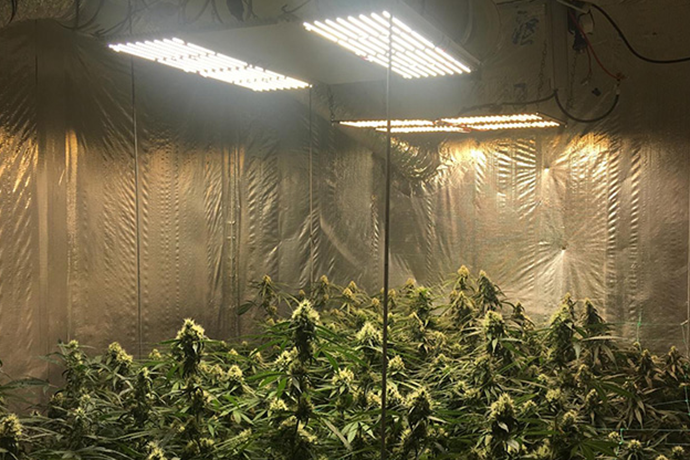

  • Application

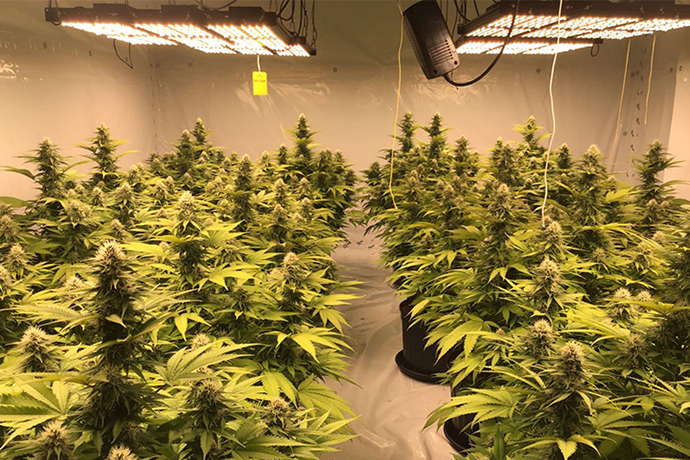

    QB profull spectrum led grow lights is using in indoor grow tent, this is a best choose for growing QB pro+ full spectrum led grow lights is using in indoor grow tent kit, this is a best choose for growing QB pro+ full spectrum led grow lights is using in indoor grow tent kit, QB pro+ full spectrum led grow lights is easy to install, it was combined by numbers of QB grow light elements, that can add in the future
FAQ FOR QB PRO+ SERIES
  • Why was Seoul's chip replaced by Epistar in the QB PRO+ series as opposed to the QB PRO?
    Because the QB PRO and QB PRO+ series are similarly positioned, the addition of the 310nm chip in the QB PRO+ raised the price. To avoid a big price difference, we decided to replace Seoul's chips with high-quality Epistar chips. Customers that prefer Seoul or other branded LED chips are welcome to contact us. Our engineering team and manufacturing are confident in their capacity to customize high-quality goods that are well-known in the market.
  • How Do I Adjust Light Intensity (PPFD) for Different Plant Growth Stages?
    The QB PRO+ series lights include a full light dimming knob, allowing users to modify the light intensity (PPFD) according to the plant's growth stage, such as germination, vegetative growth, or flowering. The hanging height can also be modified for different stages to achieve even light coverage and optimum light intensity to match each stage's individual requirements.
  • How Can Lights Last Longer in Humid Environments?
    The QC PRO+ series has an IP65 waterproof and dustproof rating, which effectively prevents moisture and vapor entry, making it ideal for greenhouses and water-rich situations. Different wavelengths of light have varying penetration abilities through materials, and thick waterproof materials can cause significant light loss. Our IP65 rating employs a nano waterproof covering that improves waterproofing while reducing light loss, particularly against transpiration water vapor produced by plants during photosynthesis. The nano waterproof coating technology not only decreases light loss, but also provides long-term protection, eliminates dust accumulation, and increases the lights' lifespan.
  • Is the QB Pro+ Series Sufficient in protection and heat dissipation design for very demanding environments?
    Good heat dissipation and high-temperature protection are thus very important since high temperatures can lower the light efficiency of LED chips, limit their lifetime, and influence the stability and efficiency of the driver circuit. Consequently, we usually choose branded LED chips since they are more dependable since they spend considerably in research on basic technologies like heat dissipation. Regarding product design, we have solved heat dissipating problems by boosting airflow across the watertight grille.
    LEDs don't give low temperatures any thought as they often operate better in colder environments; the true issue is with the circuit, particularly with regard to the driver components that could condense from temperature swings. Here is where we can be sure our design is sound and where the waterproof features of the product are evaluated.

  • Does Remote Adjustment or Smart Control Systems Support by the QB Pro Series?
    Installation height and wattage determine the QB Pro series' maximum light coverage area. For large-scale commercial growing, for instance, the 720W model fits since it covers an area of roughly 2-3 square meters. Large-scale greenhouses or commercial farms would find it especially appropriate since the high PPF and full-spectrum output guarantee that various growing zones get sufficient lighting.
