WHAT IS TB SERIES ？
TB Series Grow Light is a modular supplemental lighting system designed for modern home cultivation. It addresses the common limitation of household grow lights—narrow spectrum coverage and lack of UV and IR light.
Highly flexible and easy to hang or install, this light bar improves supplemental lighting safety and versatility. As a complement to our main series, it can enhance community engagement and provide high-end growers with additional options.

  • IP65 waterproof rating
  • Multiple installation options
  • Configurable detachable timer cable
  • Modular units with unified control
  • V-shaped hollow aluminum heat sink
  • 201° lighting angle

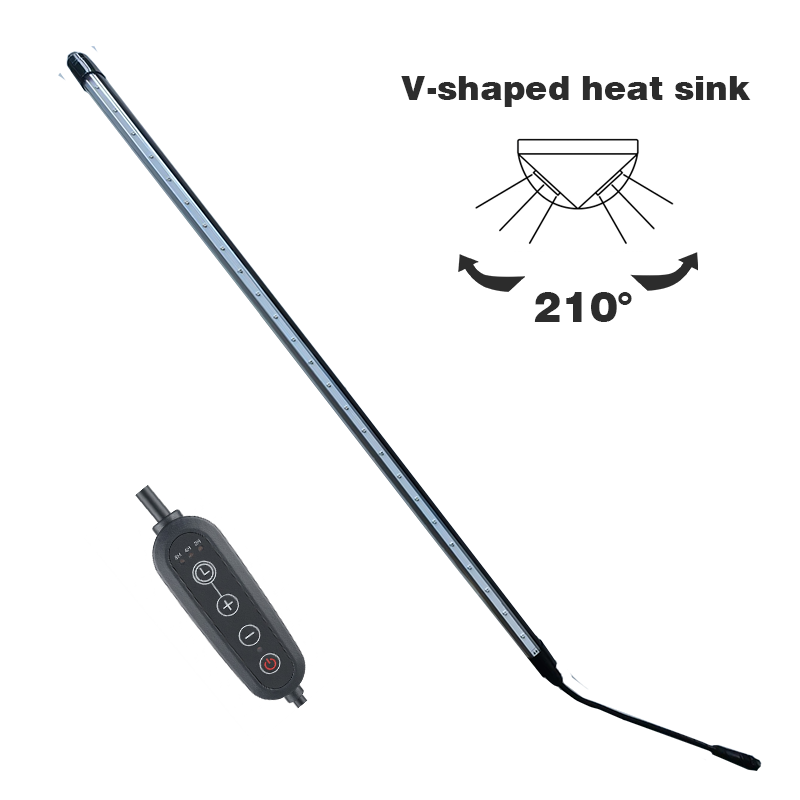

ICEVER UV grow light Tube with timer grow light
Right now, this product holds a very unique spot in the market. It combines a sleek, minimalist design with intuitive features. By choosing our standard model, you can maintain a great price advantage and capture more market share. Plus, as the popularity of "spider-style" multi-bar fixtures starts to wind down, the lower-wattageTube can be combined to achieve both high light intensity and excellent uniformity. This gives your end consumers the flexibility to set up their grows exactly how they want.
WHY CHOOSE TB SERIES ？

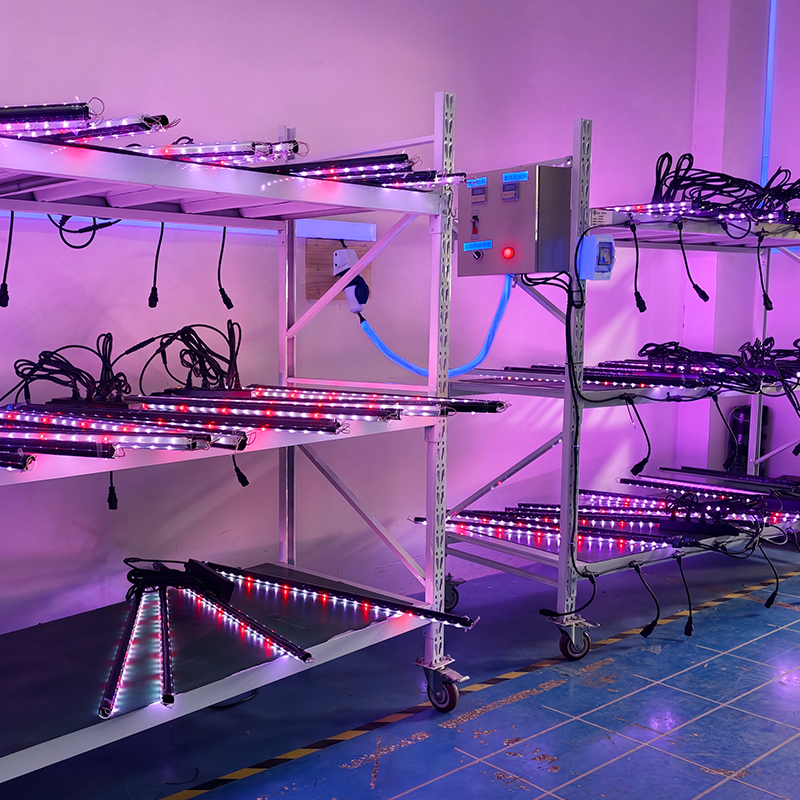

ICEVER Red R Infrared IR UVA UVA IR Red IR grow light

With the rise of AI and faster knowledge dissemination, the professional threshold for home growers is lowering, leading more cultivators to optimize plant genetics and experiment with targeted cultivation.

UV and IR light—components of natural sunlight—are increasingly recognized for their effects on plants:

Flowering adjustment · Shade effects ·  Mold spore inactivation · Product guidance
Designed with flexibility as a core principle, this product offers multiple wiring parts to support a wide range of cultivation and installation scenarios. The design also incorporates demand trends we have observed from commercial project.

Through customized cable configurations, the fixture can be integrated into vertical farming lighting systems and managed through unified multi-channel control.

In the sections below, we have included selected spectrum theories, research references, and technical resources related to this product. Brand partners are welcome to use this information according to their market positioning and customer needs to help build their own product ecosystem and educational content.

  For more information you would like, please expand the Content
  • Summary of Product Spectrum Theories

    Below are partial references for product development for your reference. We have been dedicated to manufacturing high-quality full-spectrum grow lights for years. Please visit our product center if you need full natural spectrum products.


  • Product Stability in Waterproof & Heat Dissipation

    This product has passed all acceptance tests and delivers great performance in dustproofing, waterproofing and heat dissipation.

    Waterproof Performance

    UV chips operate at relatively high power. Due to the inherent characteristics of LEDs, they generate more heat than white light chips. When the light is turned off, the temperature drops. Combined with water vapor from plant transpiration, condensation may form inside the fixture. We adopt two mainstream commercial solutions:

    • Apply high-transmittance waterproof nano coating to isolate internal components from air.
    • Adopt sealed tubes made of UV-permeable materials to stabilize the internal working environment, meanwhile facilitating transportation and installation.

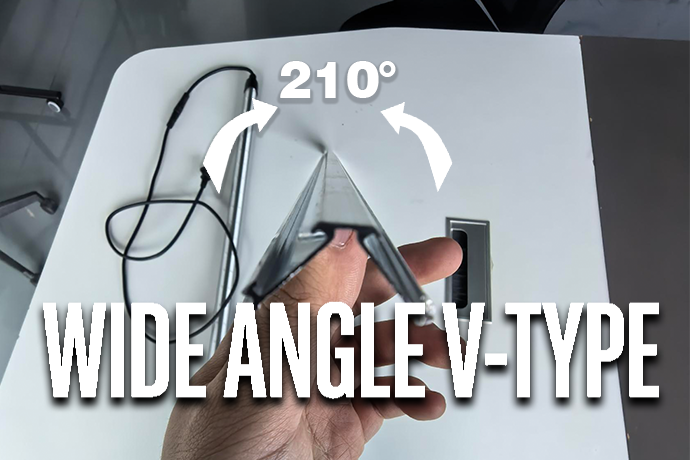

    ICEVERs Tube UV and IR supplemental lights utilize V-shaped heat sinks, enabling a wider coverage area and superior heat dissipation performance


    Heat Dissipation

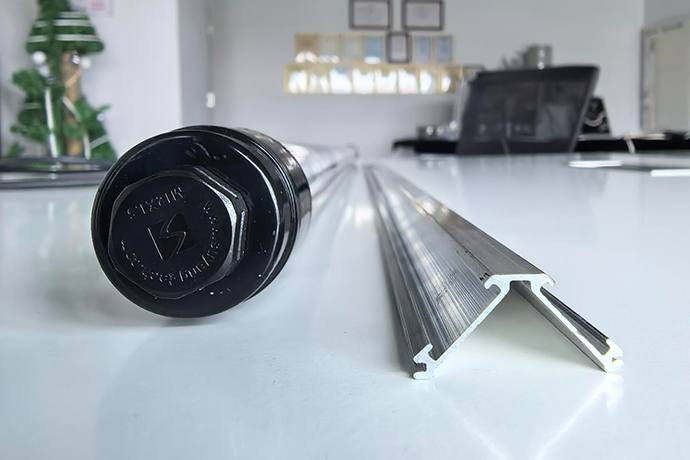

    The built-in V-shaped aluminum structure rapidly transfers heat from individual UV chips to the entire substrate, avoiding performance degradation or component damage caused by excessive junction temperature. The V-shaped design not only widens the illumination angle, but also expands the effective heat dissipation area.



  • Available Spectra of ICEVER Tube Lights

    We offer 5 spectrum types in total, including 3 single-color options and 2 mixed-color options:

    • Red (R)
    • Infrared (IR)
    • UVA
    • UVA + IR
    • Red + IR

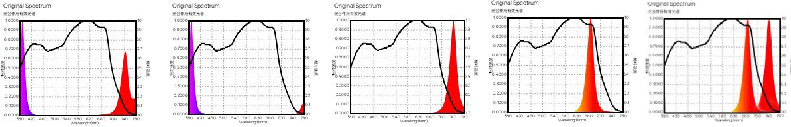

    		 Red R Infrared IR UVA UVA IR Red IR grow light spectrum


    These spectra fully cover supplementary lighting needs across all plant growth stages: seedling cultivation, vegetative growth, flowering and fruiting.

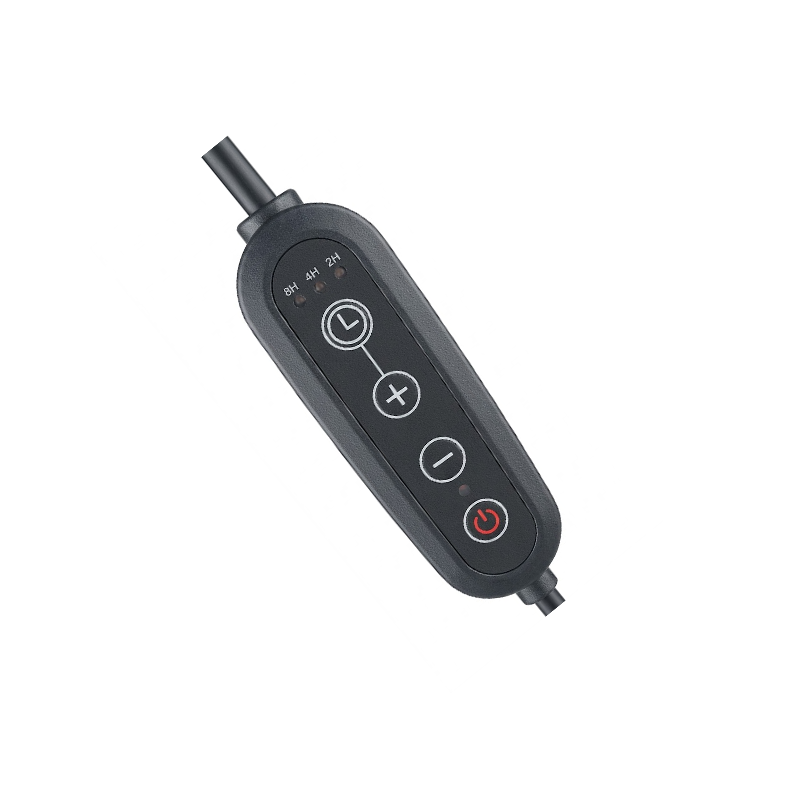

    Paired with an external 2/4/8-hour timer supporting 24-hour cycle operation, the lights can run automatically round the clock.
    Timer grow light tube UV ICEVER


  • Grow lights have excellent Quality and rigorous production process



    All LED grow lights employ stringent manufacturing methods to ensure that each product has best performance in use, In particular, ICEVER products have a wealth of exact and good data regarding light source quality, light efficiency, heat energy consumption, service life, and so on. This makes ICEVER products excellent choices in the plant lighting market. As a result, our goods have a broader spectrum, a better light source, a longer service life, and more personalized services than other lighting products.




  • Flexibility of ICEVER UV Tubes

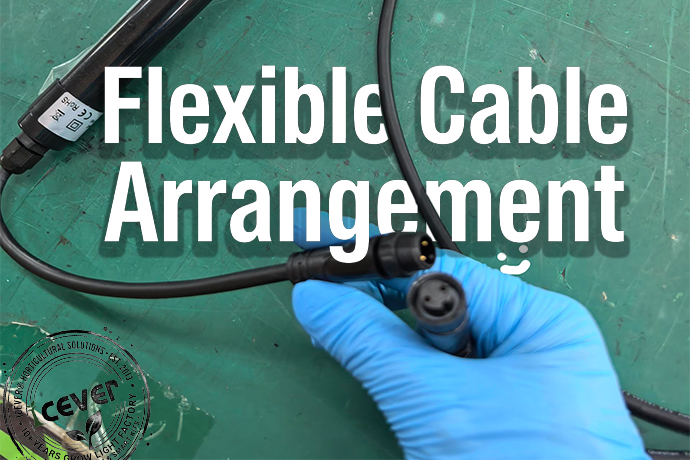

    Adapting to multiple scenarios is always our top priority. We designed interchangeable cables so clients can easily pick the right accessories based on their target market or project needs.

    For example, an on-site engineer working on smaller projects can buy a batch of standard tube lights and freely configure them for different market preferences, room sizes, wiring logic, or control systems just by changing the cables.

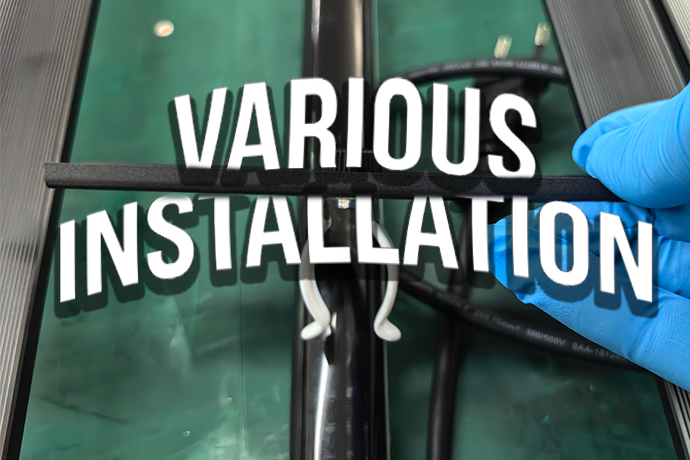

    ICEVERs Tube UV IR supplemental light tubes offer flexible installation options, allowing them to be easily mounted in most lighting fixtures to provide supplemental lighting for plants   ICEVERs Tube UV IR supplemental light tubes feature detachable cables to facilitate cable routing and management in large scale projects


    Installation is just as flexible. With our diverse mounting accessories, you can do
    • suspension hanging
    • screw mounting
    • snap-on installation
    • secure them directly onto your existing lights
    Welcome to grab a sample to test the quality and performance.


TB SERIES DATASHEET                        Contact for More
  • Specification

    Product Model T20WUVIR / T20WUV / T20WIR / T20WR / T20WRIR
    Description Model / T8 / 0.9M / Diameter 28*925MM / 210° Beam Angle / 20W / AC90-110V / UV+IR / 24-Hour Cycle Timer / 2H-4H-8H / Dimmable / XX Plug / RH
    AC Input Voltage Range AC100V(90~110V) 50/60HZ / AC120V(110V~130V) / AC230V(220V~230V)
    Total Power 20W / AC100V-0.2A / AC120V-0.16A / AC230V-0.086A
    Product Dimensions
     (mm) L*W*H    		 Diameter 28 * 925 mm
    Net Weight
     (Kg)    		 0.4 KG
    Inner Packaging Size
     (mm)    		 45 * 43 * 1080 mm
    Gross Weight
     (Kg)    		 0.5 KG
    Outer Packaging Size
     (mm)    		 Inner Size: 45x34x1015 mm / Outer Carton: 103.5 * 25 * 20 cm
    Quantity per Carton
     (PCS)    		 25 PCS
    Dimming Method TRIAC Dimming (Phase-cut dimming)
    Timer Settings 24-Hour Cycle Customization / Options: 2H / 4H / 8H
    Dimming Brightness
     (Stepped Dimming)    		 10% / 40% / 60% / 80% / 100%
    Beam Angle (V-shape double-sided) 210°
    Total LED Quantity GL-T2OWUVIR
    UVA （40pcs）+IR (10pcs)
    GL-T2OWRIR
    R+IR
    GL-T2OWUV
     UVA (46pcs)
    GL-T2OWIR
    IR (64pcs)
    GL-T2OWR
    R（64pcs）
    Spectrum Chart  UV+IR                         UV                           IR                          R                       R+IR
    Red R Infrared IR UVA UVA IR Red IR grow light spectrum
    Suitable Stage Seedling, Vegetative, Flowering, Fruiting, Supplemental Light Stages
    PPF (μmol/s)  -
    PPE (μmol/j)  -
    Luminous Flux (lm) -
    Total Harmonic Distortion (THD) ≤ 20%
    Power Factor (PF) 70%
    Operating Temperature (-20℃ ~ +40℃)
    Environmental Humidity 45%RH - 90%RH, Non-condensing, IP65
    Lifespan UV: 5000 Hours;  R & IR: 30000 Hours
    AC Power Cord 1.5m Plug Cable + 0.5m Lamp Tube Outlet
    Standard Accessories 2x Wrapped Plastic Buckles + 2x Hanging Cables + 2x Hooks + 2x Eye Bolts + 2x Hex Nuts + 2x Self-tapping Screws
    Warranty 1 Year
  • Application

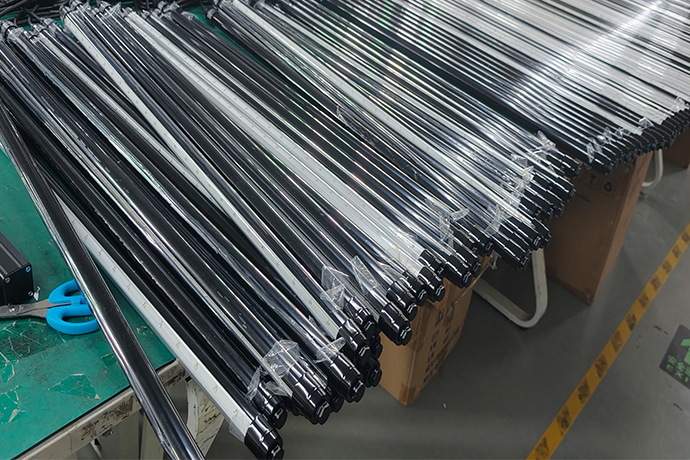

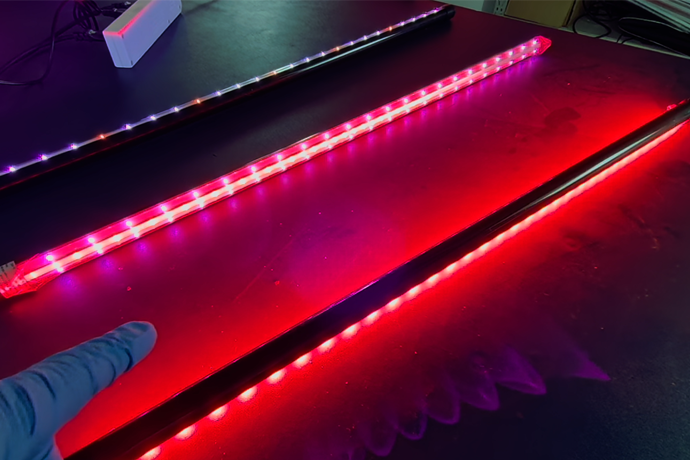

    The ICEVER factory manufactures cost-effective, engineering-grade UV IR supplementary lighting tubes ICEVER manufactures cost-effective, industrial-grade UV and IR supplemental lights that feature internal heat dissipation designs and are waterproof and dustproof

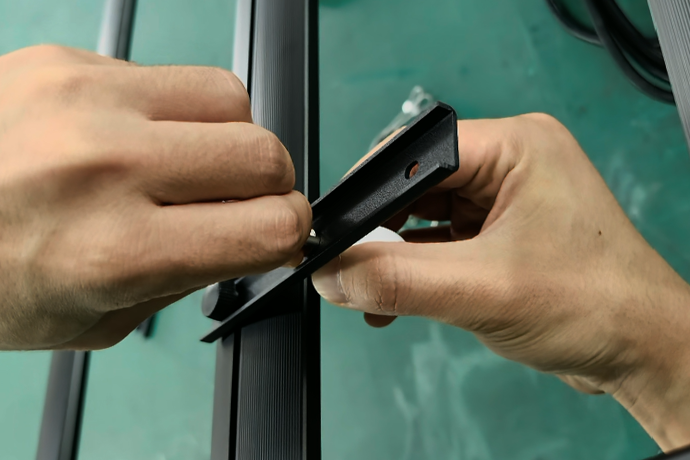

    ICEVER manufactures cost-effective, industrial-grade UV and IR supplementary lighting tubes that can be connected to customers existing products using specialized accessories The factory-fresh appearance of ICEVERs cost-effective, industrial-grade UV and IR supplemental lighting tubes

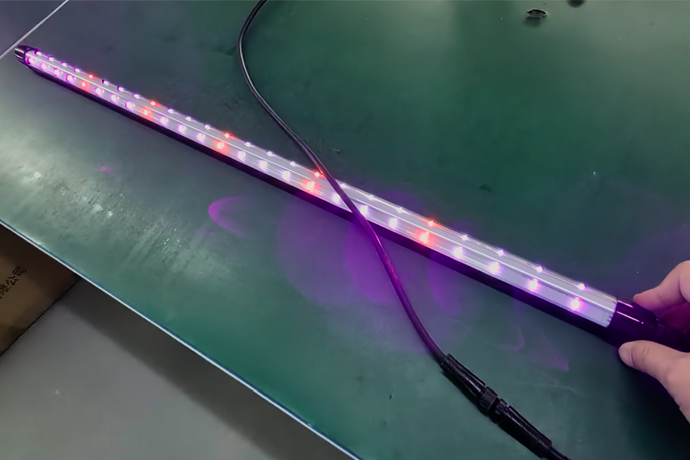

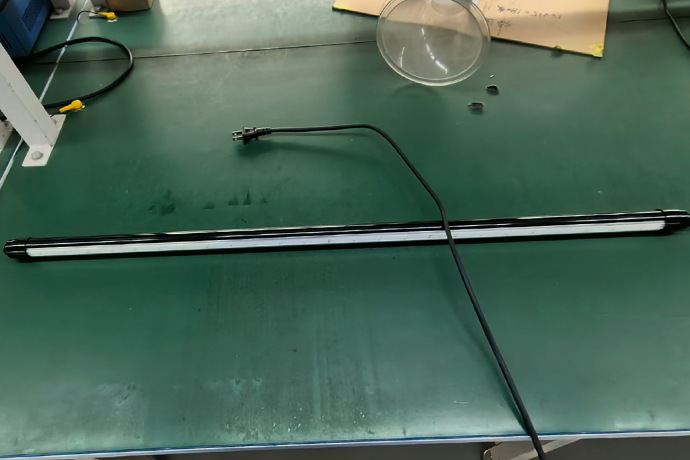

    The illuminated effect of a high-performance, industrial-grade UV IR supplementary light tube manufactured by the ICEVER factory ICEVER manufactures cost-effective, industrial-grade UV and IR supplemental lighting tubes, offering a variety of spectral combinations to meet the diverse needs of customers and markets


ABOUT ICEVER
We are an ODM&OEM manufacturer specialising in manufacturing Full spectrum LED grow light & tent. We combine research on lighting and plant growth to provide a professional and customised service to every customer.

ICEVER have a 12-person R&D team and 5 production and quality control departments to ensure the innovation and quality of our products. Our products are loved by customers from all over the world for their extremely high quality and perfect technical support. By 2023, we have supplied products to more than 600 customers from all over the world, including individual growers, farms, merchants and many suppliers. We are also very thankful to you for your trust and choosing us, and hope that we can sincerely cooperate with each other in the future.
​​​​
  • Premium quality products

    ICEVER products have exact and good data in light source quality, light efficiency, heat energy consumption, lifespan and so on. This makes ICEVER products excellent choices in the plant lighting market.

  • OEM & ODM

    We offer comprehensive OEM and ODM services to meet the customized needs. With 10+ years of design and manufacturing experience, along with top-tier production equipment, we are able to provide high-quality, personalized plant grow light and related product solutions for our clients.

  • Excellent after-sales service
    ICEVER has over 10 years of service expertise in the LED sector, and all of our products come with a long guarantee. We will continue to monitor your products in the future
  • Ongoing scientific innovation
    We have laboratory, research area for new product , We are researching more suited spectra for plants of different genera, in order to continuously improve our new products.
Inquiry Now
FAQ
  • If I have a store or website，what this product could bring for my brand?
    We optimized the cost structure during development. We adopted high-performance chips and anti-aging light-transmitting materials to ensure obvious results for end users.

    The housing is made of black polycarbonate and requires no grounding. The V-shaped heat sink distributes heat evenly. Thanks to its low power rating, it maintains stable thermal balance in all indoor growing environments. It delivers excellent cost performance and brings great profit margins for sellers.

    The detachable timer cables simplify operation, and multiple installation methods are available. If you tell us about your existing products, we can provide matching cantilever accessories to integrate this light into your product lineup.

    Feel free to contact us to arrange a factory visit or request product samples for quality and performance testing.
  • Do grow lights have UVB?
    UV specifications are clearly stated on product labels. UV components increase production costs. If you want grow lights that simulate natural sunlight, you can check the ratio of UV chips. You may also use UV test cards or UV-sensitive glasses to determine UV intensity by observing how fast and how deeply they change color.
  • Are UV grow lights bad for humans?
    Yes. Located next to blue light on the spectrum, UV rays can cause severe damage to the retinas. Most UV radiation is invisible, making such harm hard to detect.

    To protect growers, our ICEVER UV lights come with cables for external timers, so the lights can run at preset times. We also strongly recommend wearing protective goggles when working near grow lights. Most full-spectrum grow lights contain high levels of blue light to boost root development. The goggles can block harmful short-wavelength light and protect your eyes.
  • Do plants need UVB light?
    Not all plants require UVB, but most high-light plants do, such as cannabis, tropical ornamental plants and desert plants. UV in natural sunlight helps plants produce secondary metabolites and enhances their growth traits and appearance.

    However, UV supplementary lighting should only be used in specific growth stages, as excessive UV will hinder plant growth. Additionally, UV has a sterilizing effect. A small amount of UV can kill airborne mold spores, so UV lights are widely used in commercial cultivation to keep growing environments hygienic. The growing popularity of UV grow lights means professional growing technology is now accessible to more users.
