Product & Accessories Display Copy

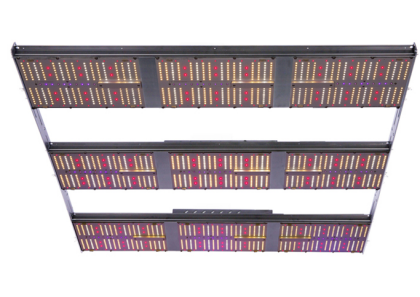

Here is the main QB Pro+ light fixture. It features a reinforced aluminum grille and a professionally calibrated spectrum, ensuring powerful and stable performance for your grow setup.

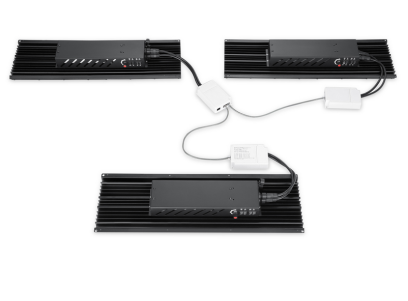

Next are the connection cables. These high-quality, durable cables allow you to link multiple lights seamlessly through the RJ interface for synchronized control.

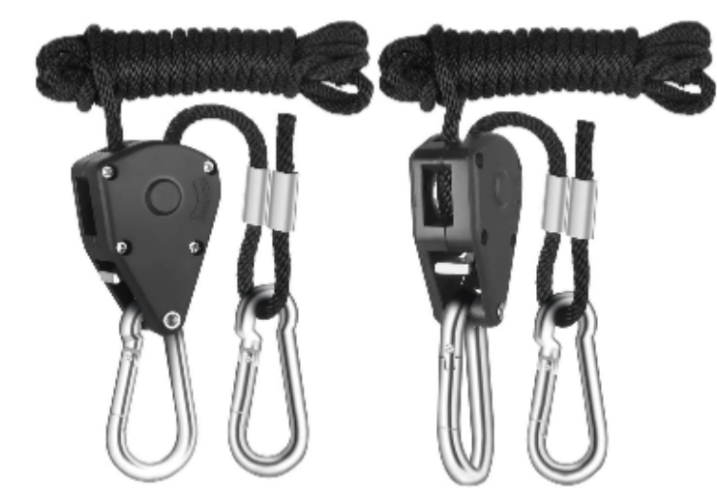

These adjustable hanging ropes make installation easy. They allow you to raise or lower the light smoothly to match the height of your plants at every growth stage.

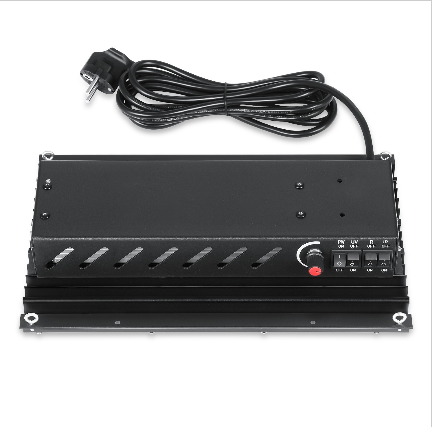

This is the power supply unit. It provides stable, efficient output to ensure the grow light operates safely and consistently over long-term use.

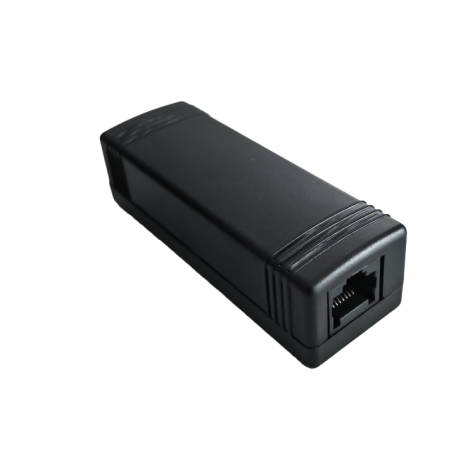

Finally, the smart controller. With Wi-Fi and Bluetooth capability, it lets you manage multiple QB Pro+ units at once, set timers, and fine-tune lighting modes for different growth phases.
|
|
|
To optimize the user experience, we used a aluminum grille when designing the QB Pro+ series grow lights. Moreover, we increased the height of the heat-dissipation grille to create a larger cooling surface. All of these changes help improve airflow and prevent heat buildup inside the grow lights.

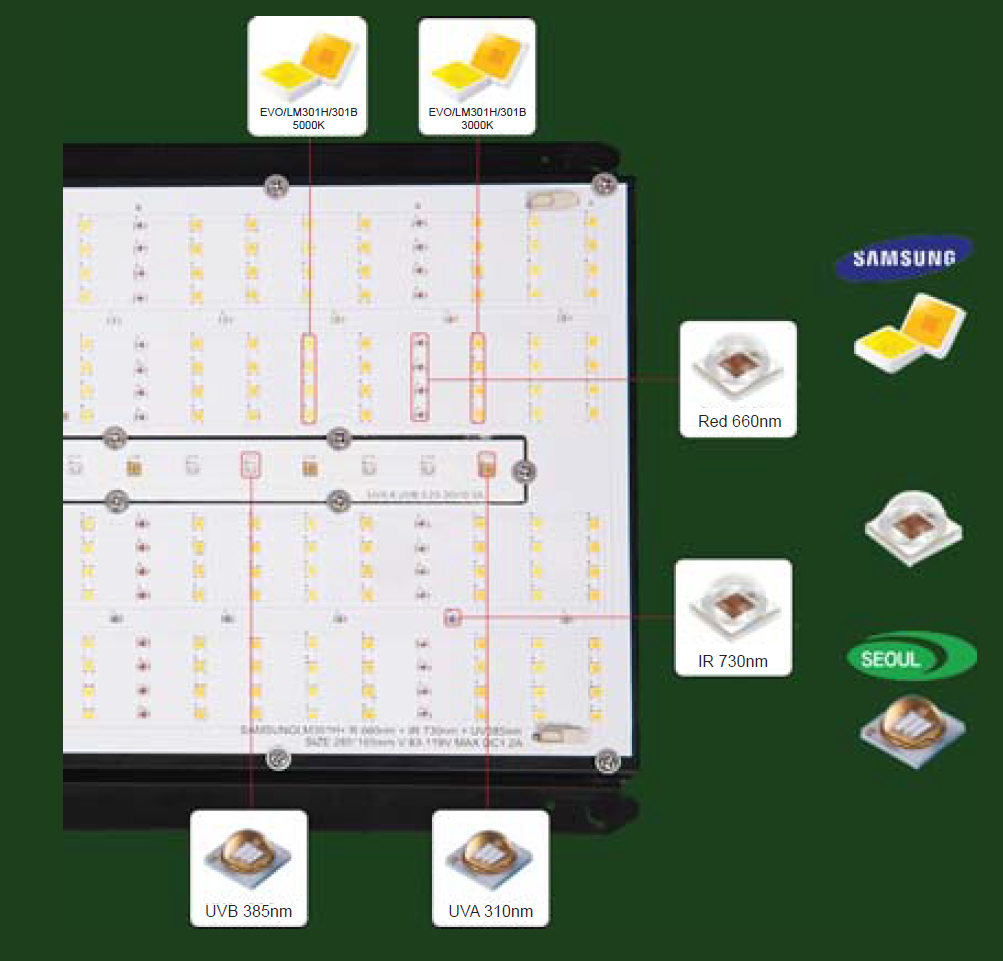

In addition, the QB Pro+ series has undergone professional spectrum calibration and is specifically tailored for cannabis cultivation. We added UVA and UVB LED beads to promote the synthesis of CBD and THC.
Furthermore, users can connect multiple QB Pro grow lights through the RJ interface. With the Wi-Fi and Bluetooth smart control system, growers can manage several units simultaneously, making it especially convenient for large-scale operations.

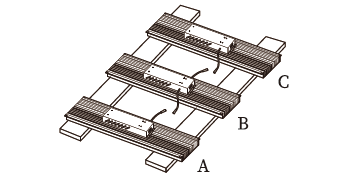

Open box, take out A, B, C board, and foam sheet. Put the foam sheet under the lamp board, as below picture, for protect the board SMD LED diode. Avoid foreign matter damage the SMD LED diode. Forbidden to weight the board.

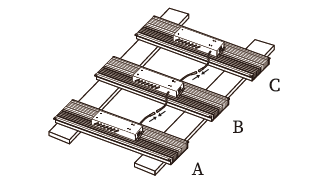

Connect the power supply connectcable as shown in the figure.
Install the bracket and fix A, B, C board, as below picture

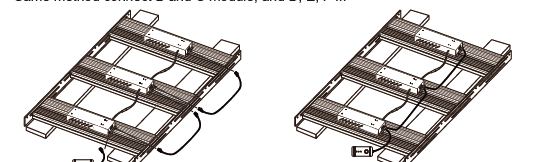

Use 1.5m Network cable connect controller with lamp A module (Signal input port) The 0.5m cable connect A (Signal output port) and B module (Signal input port) . Same method connect B and C module,and D,E.F.

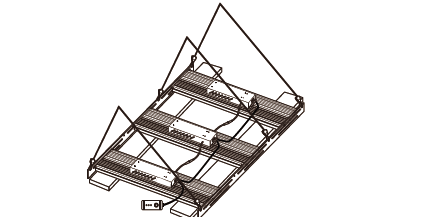

Fix the hanging rope from bracket, adjusting to the suitable length. Before hanging, please check your grow tent or plant factory can bear the weight of lamp.
Ensure whole lamp suspension is parallel, and move the each board spacing

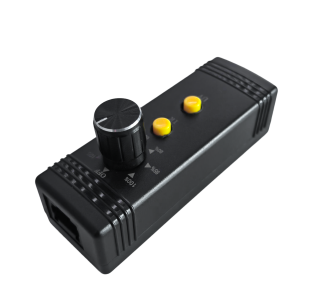

The knob adjusts the spectral light intensity from 0-100%, and different wavelengths can be switched independently.
You can smoothly adjust the brightness from 0 to 100%, and each wavelength comes with its own switch for independent on/off control.You can smoothly adjust the brightness from 0 to 100%, and each wavelength comes with its own switch for independent on/off control.
The QB Pro+ series supports remote control of multiple devices connected in series. Through Wi-Fi and Bluetooth smart systems, users can manage multiple lights simultaneously, facilitating large-scale planting operations.

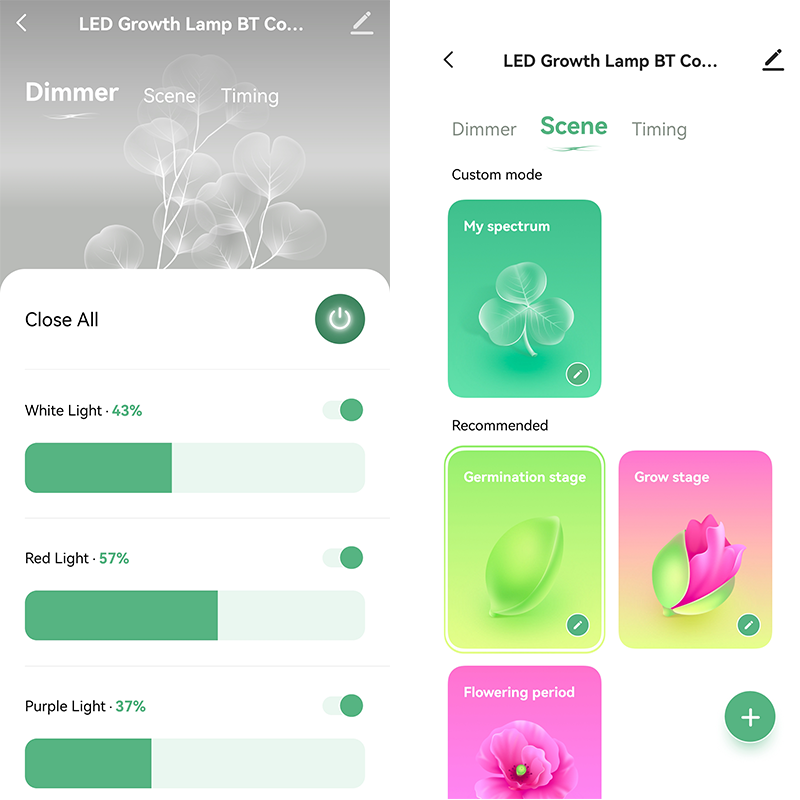

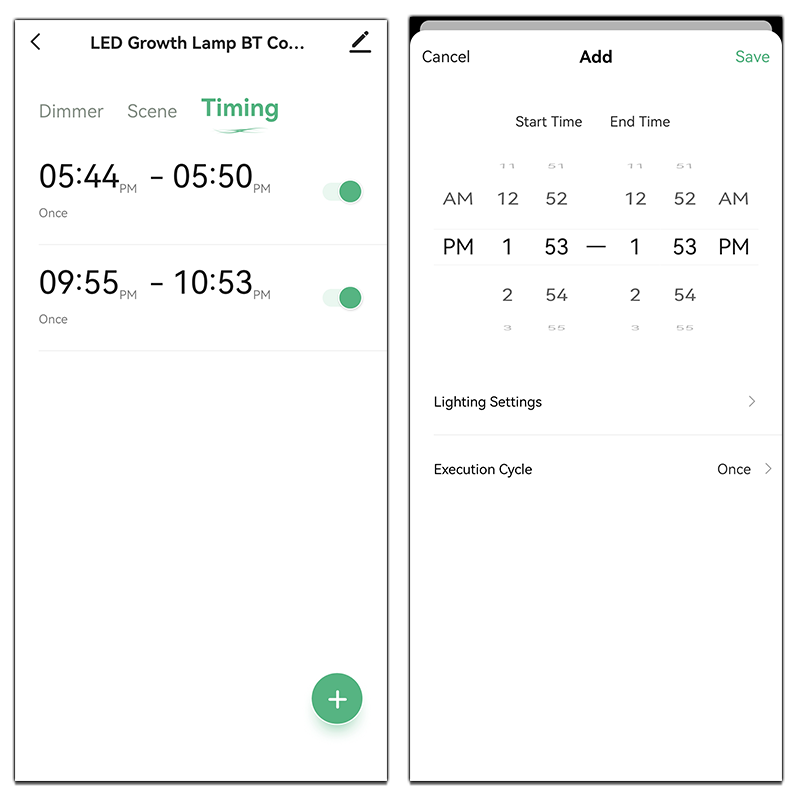

Use your phone to connect via Wi-Fi or Bluetooth and adjust your grow lights remotely with just a few taps.
